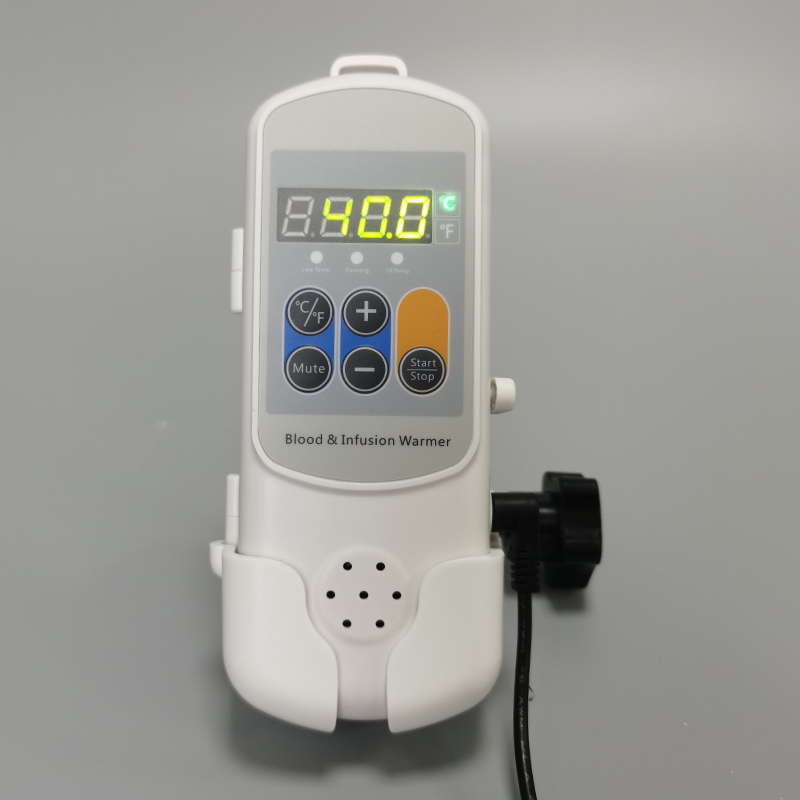

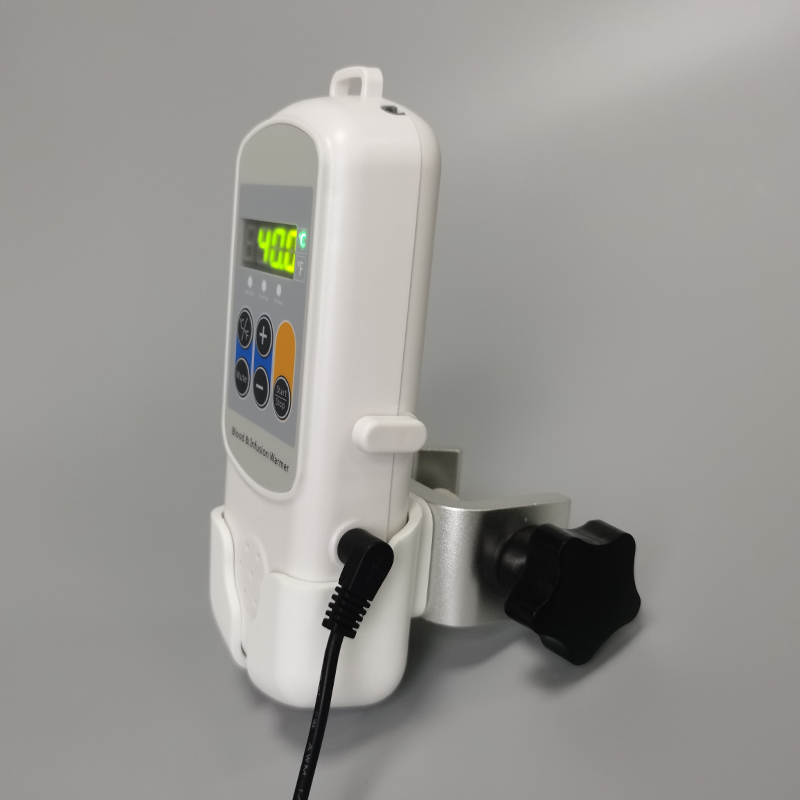

VET-1100C
Veterinary Blood and Infusion Warmer
Contact
Add to List
product description
Features
Veterinary blood and infusion warmer is to warm the blood or fluid and to relieve the vet’s hyperthermia; it can transmit heat to IV set to reach the preset temperature through the heating board;devitation is within ±1°C; it is widely used for the vet blood or infusion transfusion. The blood and infusion warmer gives warm love to the vet in the cold environment.
Technical specifications
|
PARAMETER |
SPECIFICATION |
|
Temperature Setting |
°C: 35.0°C~42.0°C °F: 95.0°F~107.6°F |
|
Temperature Accuracy |
°C:≤ ±1°C °F:≤±1.8°F |
|
Increment |
°C:0.1°C °F:0.2°F |
|
Optional Unit |
°C or °F |
|
Warming Up Time |
≤2 mins |
|
Overheat Protection |
46°C,hardware and software protection |
|
Alarm |
Overheat, low temperature, system error, door open, warming up alarm |
|
Blood and IV sets |
Standard single used PVC blood or IV tubes(diameter:3.4-4.5mm) |
|
Display |
LED |
|
Heating Way |
Long, Middle, Short grooves |
|
Installation Way |
IV Knob, Hanger optional |
|
Power Supply |
Input:100-240V(AC Power),50/60HZ,0.3-0.7A Output:12V(DC Power) 2.5A |
|
Power Consumption |
85VA |
|
Operating Environment |
Temp.:+5°C-+30°C Relative Humidity:20%-80% Atmosphere:76.0kPa-106.0kPa |
|
Transportation and Storage Environment |
Temp.:-20°C-+55°C Relative Humidity:10%-93% Atmosphere:76.0kPa-106.0kPa |
|
Degree of Protection against Ingress of Liquids |
IPX1 |
|
Degree of Protection against Electric Shock |
Class II, Type CF |
|
Working Mode |
Continuous heating |
|
Dimension |
180x70x35mm |
|
Net Weight |
0.2kg; with knob:0.4kg |
