VED-2000

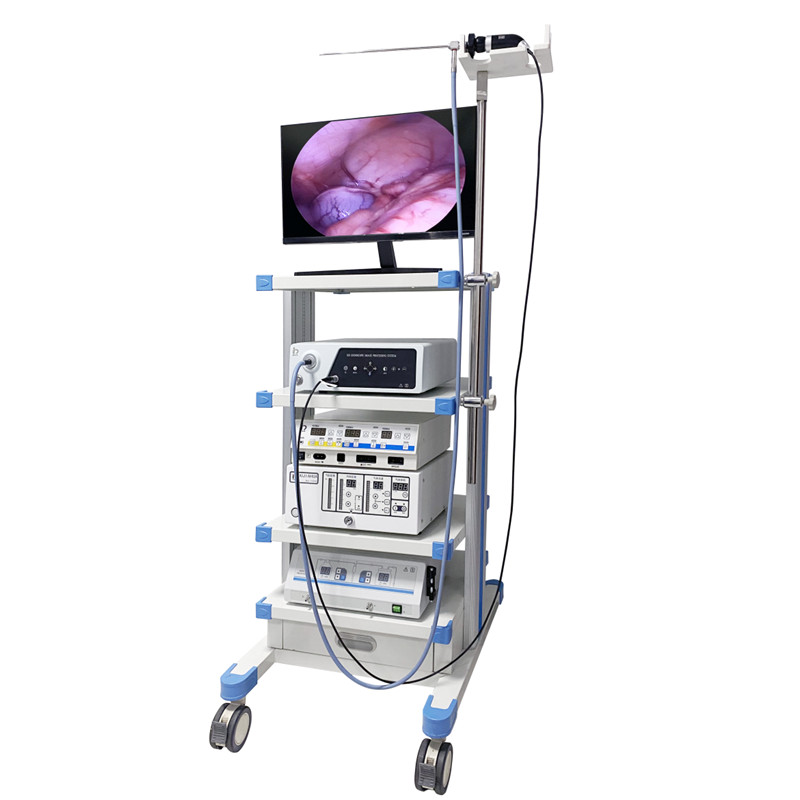

VET Trolley Urological Endoscope
Contact
Add to List
product description
Part 1- Video Processor and Light Cold Source 2 in 1 Machine (Full HD 1080P)
|
PARAMETER |
SPECIFICATION |
|
Lamp |
LED light (100W white) |
|
Power |
100-240V; 50-60HZ |
|
Illuminance |
≥3,000,000 lux |
|
Color temperature |
≥5700K |
|
Video signal output |
CVBS ,HD-SDI , VGA , DVI-D,HDMI |
|
Brightness adjustment |
0-100 grade |
|
Withe balance |
One-click white balance |
|
Main Function |
Support one -click freeze single image With 5 Inch color LCD high sensitive touch screencontral board |
Part 2- Electrosurgical Unit
|
PARAMETER |
SPECIFICATION |
|
Power supply |
110/220V ～ 50/60HZ |
|
Power capacity |
1100VA |
|
Classify |
Class I Type BF |
|
Working mode |
Intermittent loading, working continuously |
|
Fuse |
BGXP5×20 5A 3pcs |
|
Highest frequency |
400W 500Ω |
|
Packing |
Handle with care, upward, keep dry etc. |
|
Machine power dissipation |
≤1000VA (CUT 400W, BIOPOLAR 70W output) |
|
Barometric pressure |
500hPa～1060hPa |
|
Temperature |
5℃～40℃ |
|
Relative humidity |
≤80 |
|
Barometric pressure |
86.0～106.0kPa |
|
Working frequency |
360～512kHz |
Part 3- CO2 Pneumoperitoneum Insufflator Machine
|
PARAMETER |
SPECIFICATION |
||
|
Power supply voltage |
AC220V |
||
|
Power frequency |
50Hz |
||
|
Input power |
40VA |
||
|
Fuse |
flal250v 1A |
||
|
Control range of gas injection pressure |
0.67kpa ~ 3.30kpa (1mmhg) |
||
|
Control accuracy of gas injection pressure |
± 0.13kpa (1mmhg) |
||
|
Flow rate range of injected gas |
1L / min – 30L / min respectively |
||
|
Allowable deviation of injected gas flow rate |
±20% |
||
|
|||
Part 4- Souice Pump
|
PARAMETER |
SPECIFICATION |
|
Voltage |
AC220V 50HZ |
|
Rated Pwr. |
50VA |
|
Range of the pos-pressure |
10～50kPa |
|
Range of the neg-pressure |
-50～-10 kPa |
|
Safe classification |
Type I Model B |
|
Run mode |
Inter loading/Cont. Duty |
|
Noise |
≤50dB |
|
Allowable deviation of injected gas flow rate |
±20% |
Part 5- Irrigation Pump
|
PARAMETER |
SPECIFICATION |
|
Voltage |
240v,50Hz/60Hz |
|
Rated Pwr. |
100VA |
|
Range of the Press. |
15～400mmHg (2～53.3kPa) |
|
Range of flw. |
0.1～1.0 L/min |
|
Safe classification |
Type I Model B |
|
Run mode |
Inter loading/Cont. Duty |
|
Noise |
≤50dB |
|
Host size |
360*315*160mm/ 9KGS |
Part 6- LCD Monitor
|
PARAMETER |
SPECIFICATION |
|
Display size |
24” |
|
Power Supply |
External Power Supply 24V |
|
Resolution |
1920×1200 |
|
Display Ratio |
16:10 |
|
Color |
1.07B |
|
Camoration Brightness |
180±10 cd/㎡ |
|
Max.Brightness |
400 cd/㎡ |
|
Package size |
65*36.5*60cm (G.W.:16.0kgs) |
Part 7- Equipment Vehicles
|
PARAMETER |
SPECIFICATION |
|
Size |
500 * 700 *1350mm |
|
Package size |
118.5*63.5*22cm (G.W.:28kgs) |
Part 8- Sterilization Equipment
|
PARAMETER |
SPECIFICATION |
|
Indoor volume |
Φ400X625mm |
|
Size |
522X567X1020mm |
|
Size |
785X 575X1800mm |
|
Storage Volume |
5/6 layers |
|
Voltage power supply |
12V 50Hz 30W |
|
Sterilization mode |
Manual automatic |
|
Main functions |
It can display the date, time, week and cumulative desinfection time, temperature and humidity, circulation wind drying, ulraviolet ray, ozone disinfection, Biopsy forceps hook, and lighting LED lamp in open cabinet. |
Rigid endoscope Part
Hysteroscope set
|
ITEM |
NAME |
SIZE |
QTY/UNIT |
|
A0012 |
Heysteroscope |
Φ4X302mm 30° |
1/pc |
|
F1116.2 |
Outer sheath |
30°,19.5FrX200mm |
1/pc |
|
F1117.2 |
OP-inner sheath |
With channel for 4mm endoscope |
1/pc |
|
F1110.1 |
Biopsy forceps |
5FrX 340mm,rigid |
1/pc |
|
F1113.1 |
scissors |
5FrX 340mm,rigid |
1/pc |
|
F2107.2 |
Loop catching forceps |
5FrX 340mm,rigid |
1/pc |
|
T1001 |
adaptor |
|
1/pc |
|
T1009.1 |
Luer-lock adaptor |
|
|
|
A2145 |
Sealing cap |
|
1/pc |
|
A4010.1 |
Cleaning bar |
Φ1X340mm |
1/pc |
Cystoscope set
|
ITEM |
NAME |
SIZE |
QTY/UNIT |
|
A0022 |
Cystoscope |
Φ2.9X302, 30° |
1/pc |
|
F1118 |
Outer sheath |
16.5Fr, with channel |
1/pc |
|
F1110.1 |
Biopsy forceps |
5FrX 340mm,rigid |
1/pc |
|
F1113.1 |
Scissors |
5FrX 340mm,rigid |
1/pc |
|
F2107.2 |
Loop catching forceps |
5FrX 340mm,rigid |
1/pc |
|
T1001 |
Adaptor |
|
1/pc |
|
T1009.1 |
Luer-lock adaptor |
|
1/pc |
|
A2145 |
Sealing cap |
|
1/pc |
|
A4010.1 |
Cleaning bar |
Φ1X340mm |
1/pc |
Resectoscope set
|
ITEM |
NAME |
SIZE |
QTY/UNIT |
|
A0011 |
Resectoscope |
Φ4X302mm ,12° |
1/pc |
|
A3162 |
Working element |
passive |
1/pc |
|
A3163.2 |
Inner sheath with obturator |
22Fr |
1/pc |
|
A3165.2 |
Ourter sheath |
25.5Fr |
1/pc |
|
A3111 |
Loop electrode |
Loop |
1/pc |
|
A3114 |
Straight loop electrode |
Straight loop |
1/pc |
|
A3122 |
Roller electrode |
Roller |
1/pc |
|
T1001 |
Adaptor |
|
1/pc |
|
T1009.1 |
Luer-lock adaptor |
|
1/pc |
|
T4002 |
Evacuator |
Ellik |
1/pc |
|
T1001.5 |
Evacuator adaptor |
|
1/pc |
|
M1001 |
High frequency cord |
|
1/pc |
Laparoscopy
|
NAME |
SIZE |
QTY/UNIT |
|
|
Light guiding line |
Φ4×2500mm |
1/pc |
|
|
Insufflator needle |
100-150mm |
1/pc |
|
|
Electric Ballpoint |
Φ5×330mm |
1/pc |
|
|
Sealing cap |
Φ5mm |
10/pc |
|
|
Curved dissectig forceps |
Φ5×330mm |
1/pc |
|
|
Curved scissors forceps |
Φ5×330mm |
1/pc |
|
|
Electrode hook |
Φ5×330mm |
1/pc |
|
|
Torcars |
Φ5mm |
1/pc |
|
|
Flap valve spiral trocar |
Φ10mm |
2/pc |
|
|
Tissue biopsy forceps |
Φ5×330mm |
1/pc |
|
|
Clip applicar |
Φ5×330 |
1/pc |
|
|
Titanium clip |
|
1/box |
|
|
Laparoscopy |
Φ10mm/0° |
1/pc |
|
Optional accessories
|
NAME |
SIZE |
QTY/UNIT |
|
|
Atraumatic grasping forceps |
Φ5×330mm |
1/pc |
|
|
Dissecting forceps 90° |
Φ5×330mm |
1/pc |
|
|
Surgical forceps 90° |
Φ5×330mm |
1/pc |
|
|
Needle -holding forceps |
Φ5×330mm |
1/pc |
|
|
Knotter forceps |
Φ5×330mm |
1/pc |
|
|
Intestine forceps |
Φ5×330mm |
1/pc |
|
|
Salpinx grasping forceps |
Φ5×330mm |
1/pc |
|
|
Trefoil expansion forceps |
Φ5×330mm |
1/pc |
|
|
Spatula- electrode |
Φ5×330mm |
1/pc |
|
|
Kont-pusher |
Φ5×330mm |
1/pc |
|
|
Bipolar forceps |
Φ5×330mm |
1/pc |
|
|
Bipolar scissors |
Φ5×330mm |
1/box |
|
|
Flushing tube |
Φ5×330mm |
1/pc |
|
|
Flusher |
|
1/pc |
|
|
adaptor |
10mm-5mm |
1/pc |
|
|
Titanium clip |
L |
1/box |
|
|
Titanium clip |
M |
1/box |
|
|
Trocars |
10mm |
1/pc |
|
|
Flap valve spiral trocar |
10mm |
1/pc |
|
|
Sealing cap |
10mm |
10/pc |
|
|
Clean brush |
10X480mm |
1/pc |
|
|
Clean brush |
5X 480mm |
1/pc |
