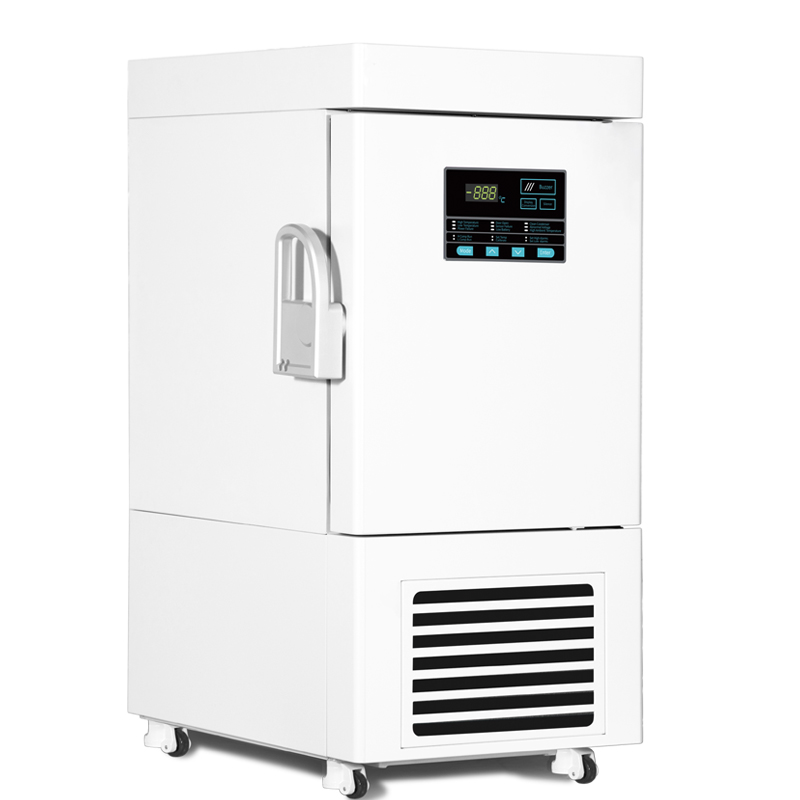

VDF-86V58
Ultra-low Medical Freezer (-40 ~ -86°C)
Product Categories
-
Animal Monitoring & Life Support
-
Operating Theatre Equipment
-
Animal Diagnostic Laboratory
- Automatic Integrated Gene Detection System
- Hematology Analyzer
- Elisa Reader
- Chemistry Analyzer
- Blood Gas Electrolyte Analyzer
- Urine Analyzer
- Blood Gas&Immunoflurescence Analyzer
- Biological Safety Cabinet
- Biological Microscope
- Centrifuge
- Medical Pharmacy Refrigerator
- Blood Bank Refrigerator
- Combined Medical Refrigerator and Freezer
- Medical Freezer
- Laboratory Incubator
- Dry Oven
- Pet Rapid Test
-
Sterilizer (Autoclave)
-
Medical Imaging
-
Clinical Examination
-
Dental Equipment
-
Pet Grooming
Contact
Add to List
product description
Features
-86°C ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, epidemic prevention service, and research institutes, laboratories in electronic and chemical plants and biological engineering institutes.
Technical Specifications
|
Performance |
|
|
Shelf/drawer |
Stainless steel shelf/1 |
|
Cooling method |
Direct cooling |
|
Defrost |
Manual |
|
Ambient temperature |
10~32℃ |
|
Temperature range |
-40~-86℃ |
|
Noise (db) |
50 |
|
Inside material |
Stainless steel |
|
Outside material |
Color sprayed steel |
|
Insulation |
PURF |
|
Refrigeration System |
|
|
Refrigerant |
R4001 |
|
Temp.controller |
Microprocessor |
|
Sensor |
PTC 100 |
|
Display |
Digital |
|
Compressor |
SECOP/1 |
|
Frozen Racks |
2 (6×2) |
|
Boxes (2 inches) |
24 |
|
Samples (2ml) |
2400 |
|
Alarms |
|
|
High/low temperature |
Y |
|
Power failure |
Y |
|
Abnormal voltage |
Y |
|
Sensor error |
Y |
|
Filter screen check |
Y |
|
Thermostat failure |
Y |
|
Low battery |
Y |
|
Condenser clean |
Y |
|
High ambient temperature |
Y |
|
Door ajar |
Y |
|
Power failure backup system (alarm) |
72h |
|
Dimensions |
|
|
Capacity (L/cu.ft) |
58L/2 |
|
Exterior size (W*D*H)(mm) |
635*757*1212 |
|
Interior size (W*D*H)(mm) |
330*453*410 |
|
Package size (W*D*H)(mm) |
730*845*1400 |
|
CBM |
0.87 |
|
NT./GT.(kg) |
115/155 |
|
Electrical Data |
|
|
Voltage Frequency (v/Hz) |
220/50Hz |
|
Power(W) |
442W |
|
Current (A) |
3.18A |
|
Power consumption (kWh/24h) |
6.09 |
|
Accessories |
|
|
Inside door |
1 |
|
Test hole QTY/Dia. |
1/25MM |
|
USB port |
Y |
|
Data logger |
Optional |
|
Remote alarm port |
Y |
|
Optional |
|
|
CO2 back up system |
Optional |
|
LN2 back up system |
Optional |
