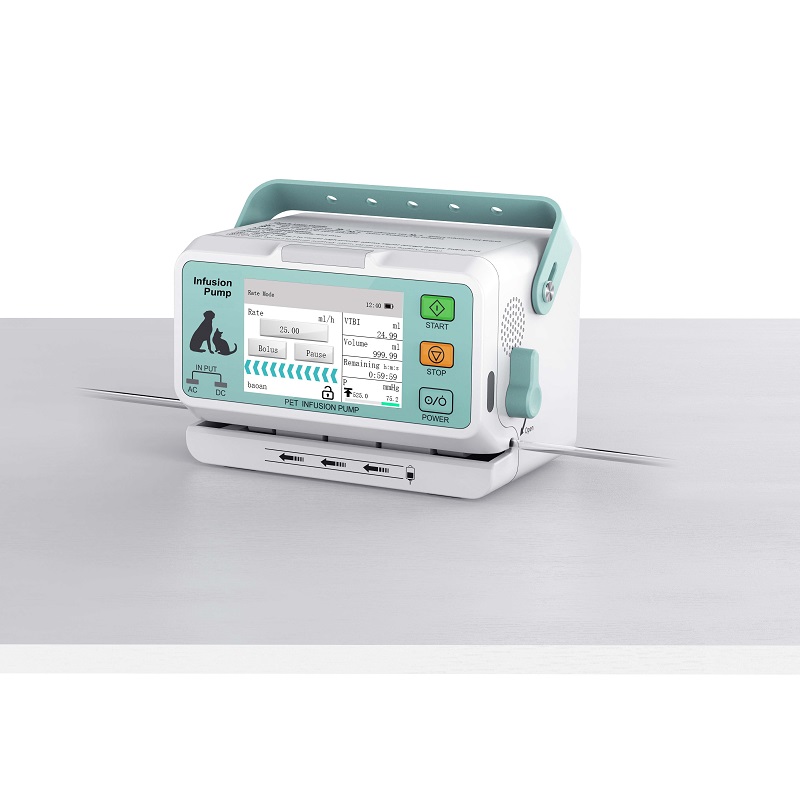

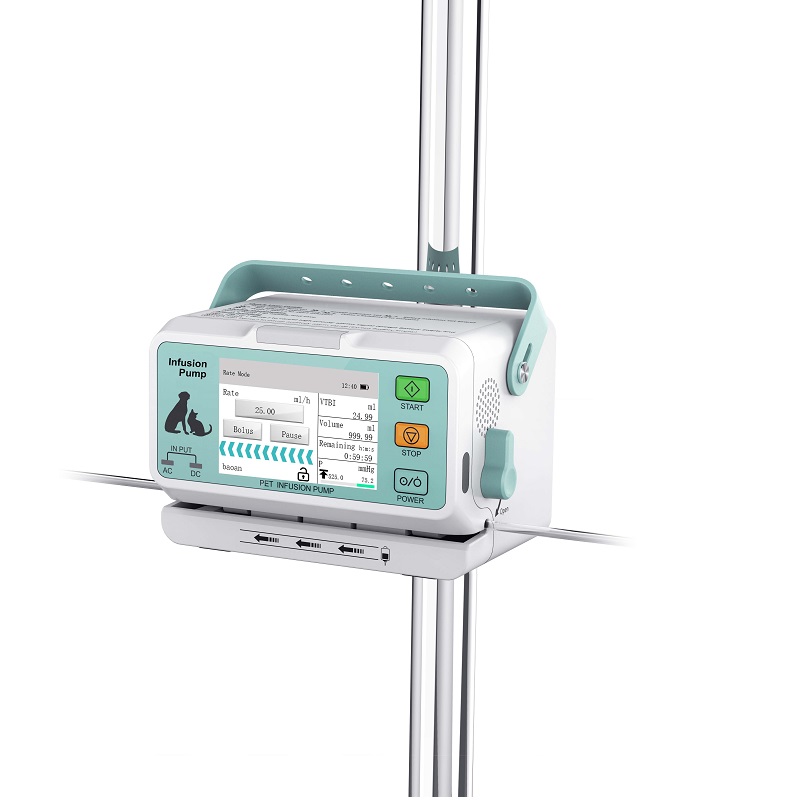

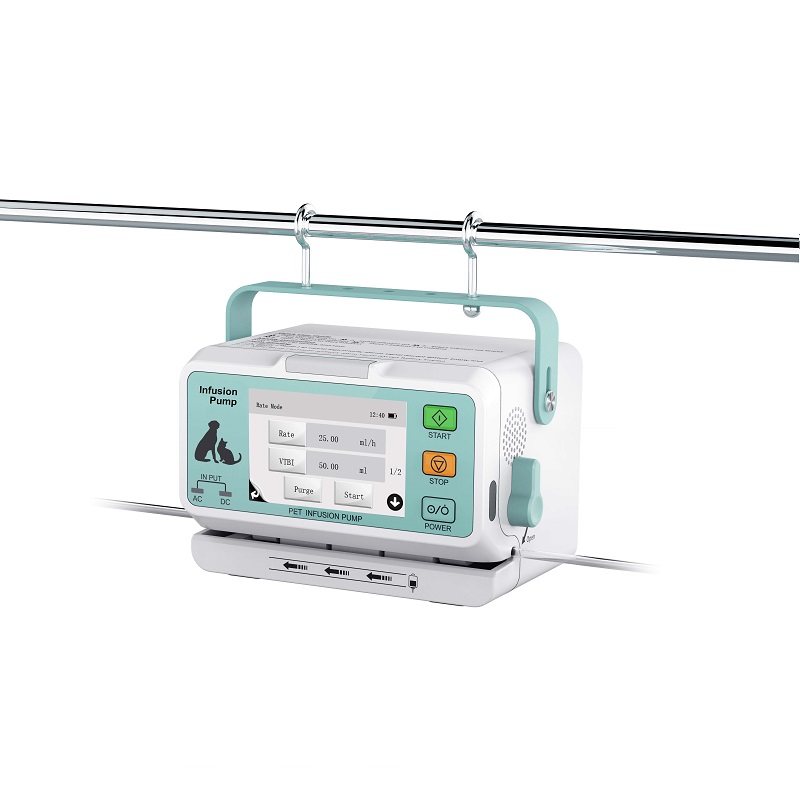

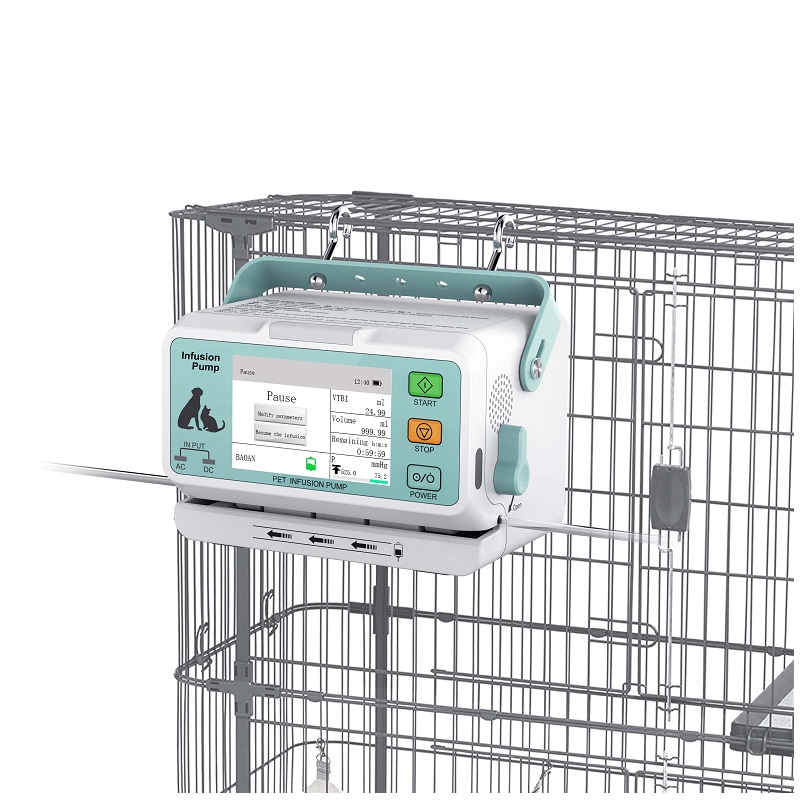

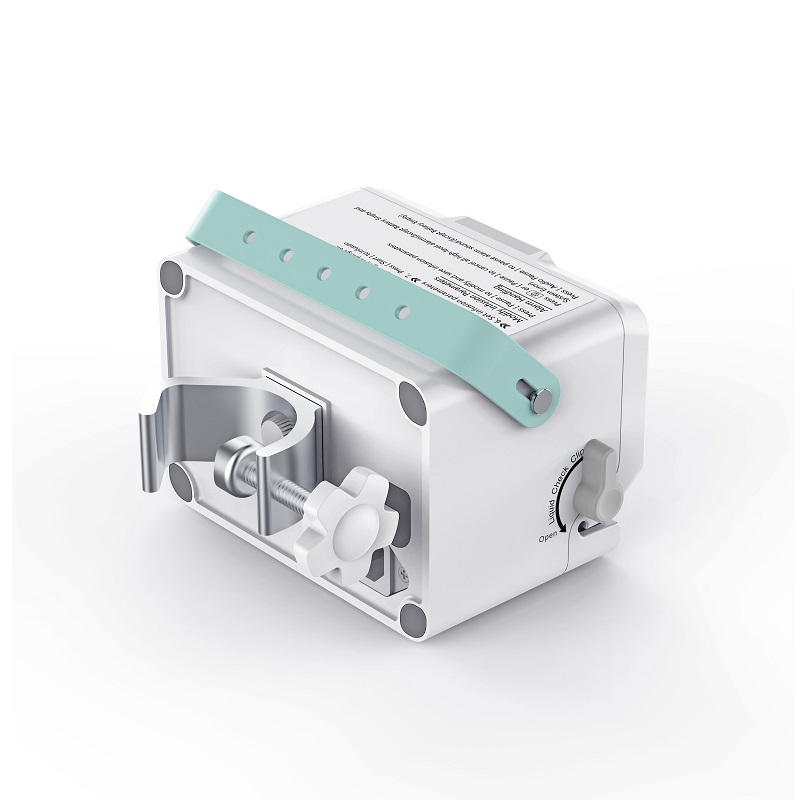

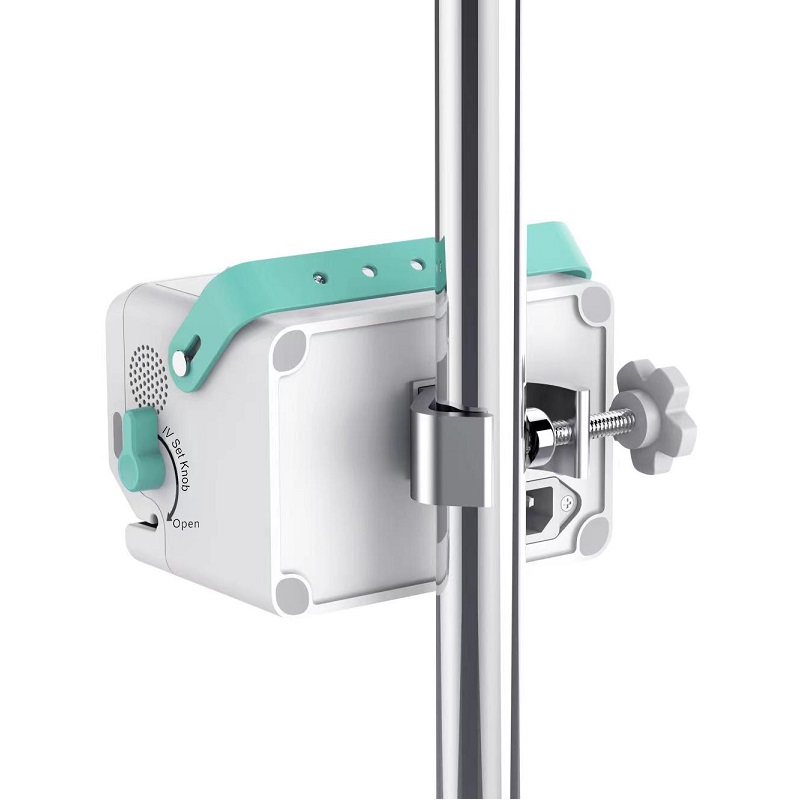

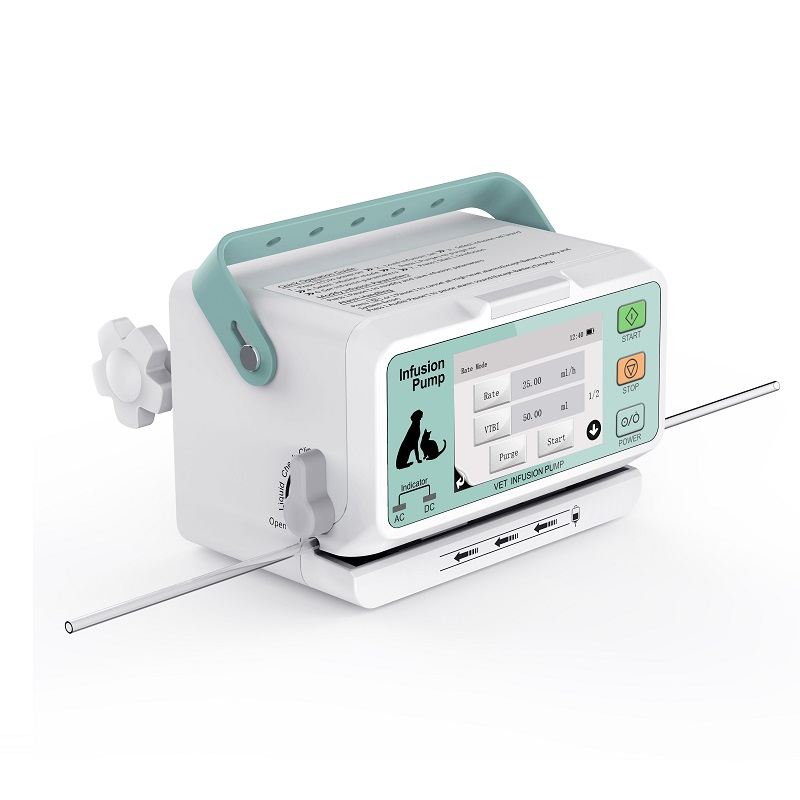

VIP-100
Veterinary Infusion Pump
Contact
Add to List
product description
Features
- 3.5″ colorful & high-res touch screen, easy to operate with human-computer interface.
- Unique doorless design, visible place the IV set directly, convenient, and quickly.
- Dual CPU control, IP34 dustproof and waterproof.
- AC/DC power, larger battery capacity 2900mAh. long working time about 10 hours.
- Reduce the bubbles error alarm because horizontally place the IV set design.
- Very light weight only 1.3 KG, small and exquisite, convenient to carry and transport.
- DPS dynamic pressure monitoring, real-time display of the current pressure value.
- New independent 3 stage peristaltic device design with patented technology, making infusion set stress evenly, improving infusion accuracy, extending the life of infusion pump and IV set, reducing workload, and making patients more comfortable in infusion process.
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Product Size |
165*103*100mm (Not include fixed mount), Net Weight 1.3kg |
|
Screen |
3.5″ Colorful & High-resolution Touch Screen |
|
Infusion Mode |
Rate Mode (Customized Mode Available) |
|
Accuracy |
±5% (use the IV set calibrated) |
|
Preset Infusion Time |
1s-99h59min |
|
Infusion Rate Rage |
0.1~1200.00ml/h |
|
Increment |
0.01ml/h |
|
Purge |
0.1-1200ml/h |
|
IV sets |
Diameter 3mm~4.5mm |
|
IV Set Brand |
2 types built-in IV Set Brand for choice or user-defined new brand |
|
VTBI |
0.1-9999.99ml |
|
Increment |
0.01ml/h |
|
Bolus Rate |
0.1~1200ml/h, Automatic or Manual both are available |
|
Occlusion Pressure |
Low /Medium /High adjustable Downstream pressure monitoring |
|
Anti-bolus |
Automatically reduce the tube pressure when the tube is blocked |
|
Bubble Size |
Adjustable 50 / 100 / 250 /500 / 800ul, Ultrasonic detection |
|
Alarm |
Air in Line / Downstream Occlusion / No Battery / VTBI Completed / KVO Finished / System Error / No Infusion Tube / Standby Time Expired / Reminder / Low Battery / No Battery Inserted / Time Near End / No AC Power |
|
Power |
AC100-240V, DC13V-15V, and built-in battery 2900mAh, long working time about 10 hours (25ml/h) |
|
Protection Class |
Double CPU, IP34 Dustproof & Waterproof |
