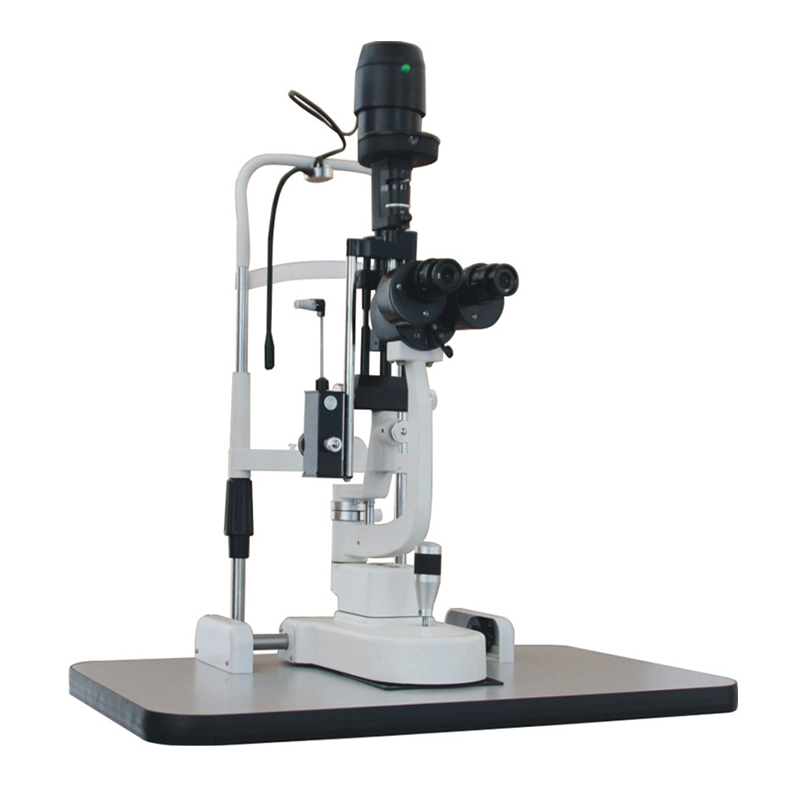

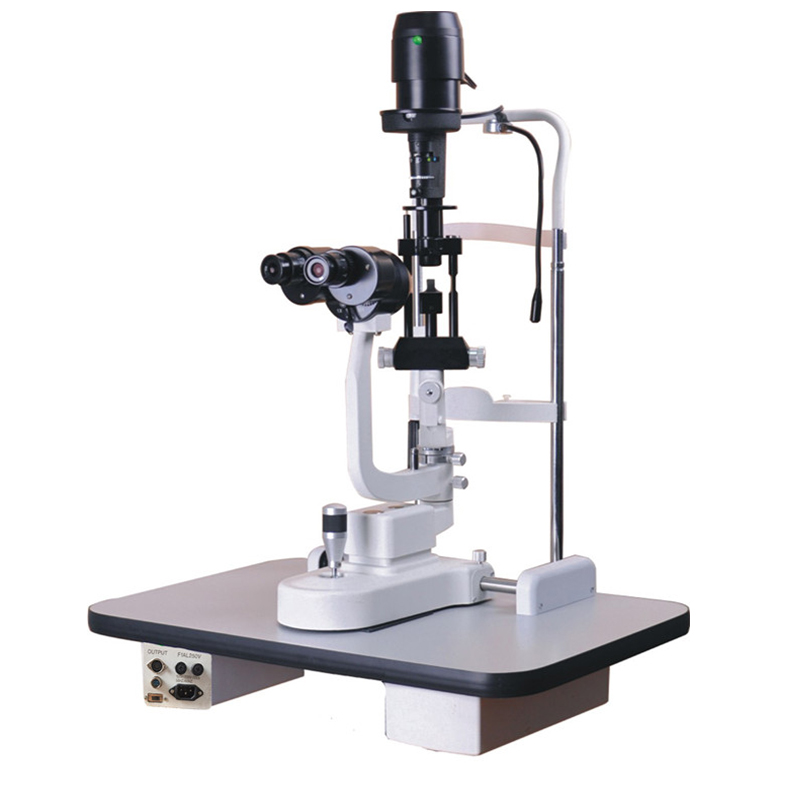

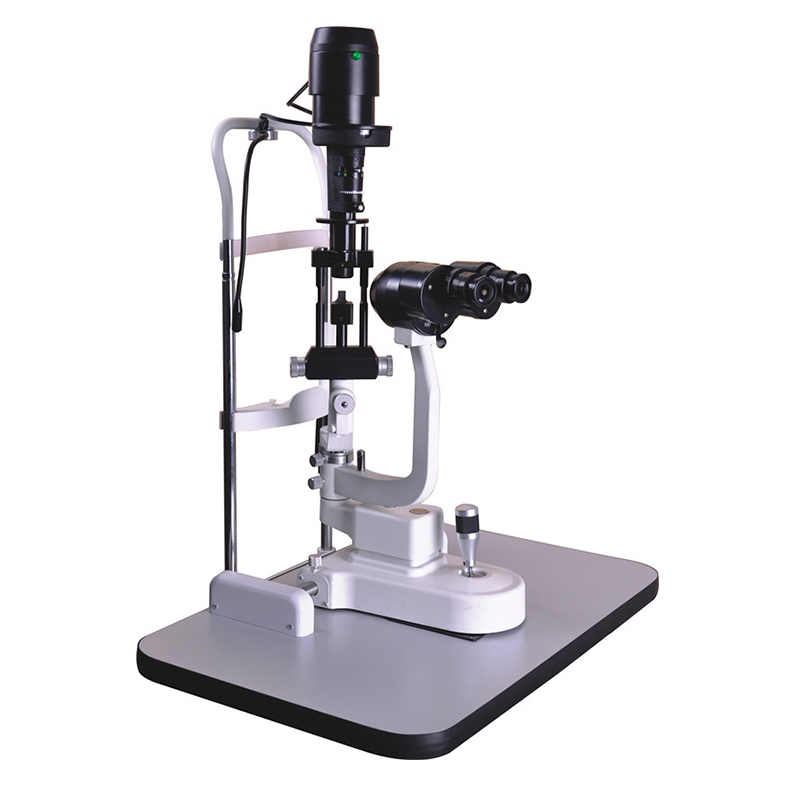

product description
Description
2 steps magnification,10x, 16x for choice;
Converging Optical Path;
The optical lenses are made of glass imported from Germany: multi-coated, mildewproof and anti-reflection, given a superior clarity image of observers.
Technical Specifications
PARAMETER |
SPECIFICATION |
Microscope Type |
Converging Stereoscope |
Magnification |
2 steps magnifications |
Magnification |
10x , 16x |
Adjustable Range of PD (mm) |
55~75 |
Adjustable Diopter |
±5D |
Slit Width(mm) |
0-9 adjustable |
Slit Height(mm) |
1-9 adjustable |
Slit Angle |
0-180° |
Light Spot Diameter (mm) |
Φ9、Φ8、Φ5、Φ3、Φ2、Φ1、Φ0.2 |
Filters |
Heat Absorption, Grey, Red Free, Cobalt Blue |
Illumination Bulb |
12V / 30W or 12V/50W halogen bulb |
Voltage/frequency |
AC220V/50 Hz; AC110V/60Hz |
Power |
60VA |
Whole Packing Volume |
0.26m3 |
Optional: Applanation Tonometer, Elevating table |
