VET-M2
Vet Handheld Pulse Oximeter
Contact
Add to List
product description
Introduction
The VET-M2 veterinary handheld pulse oximeter adopts photoelectric oxyhemoglobin inspection technology in accordance with capacity pulse scanning&recording technology, which can be used to measure SPO2 and pulse through animal’s tongue or ear.
Features
-2.4-inch high-resolution TFT screen
-Stylish and exquisite appearance
-Small size, easy to carry
-Compatible software for data analysis

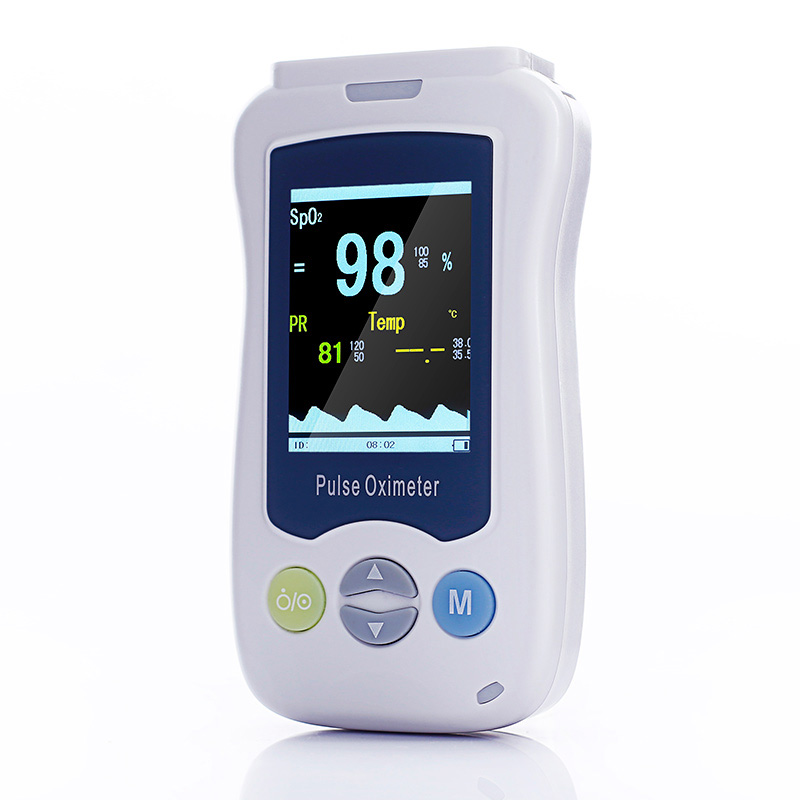

-Real-time display of values and waveforms
-Support multiple languages
-Digital oximetry technology,anti-motion interference
-Strong resistance to weak perfusion
-Suitable for use at home, pet hospitals, etc

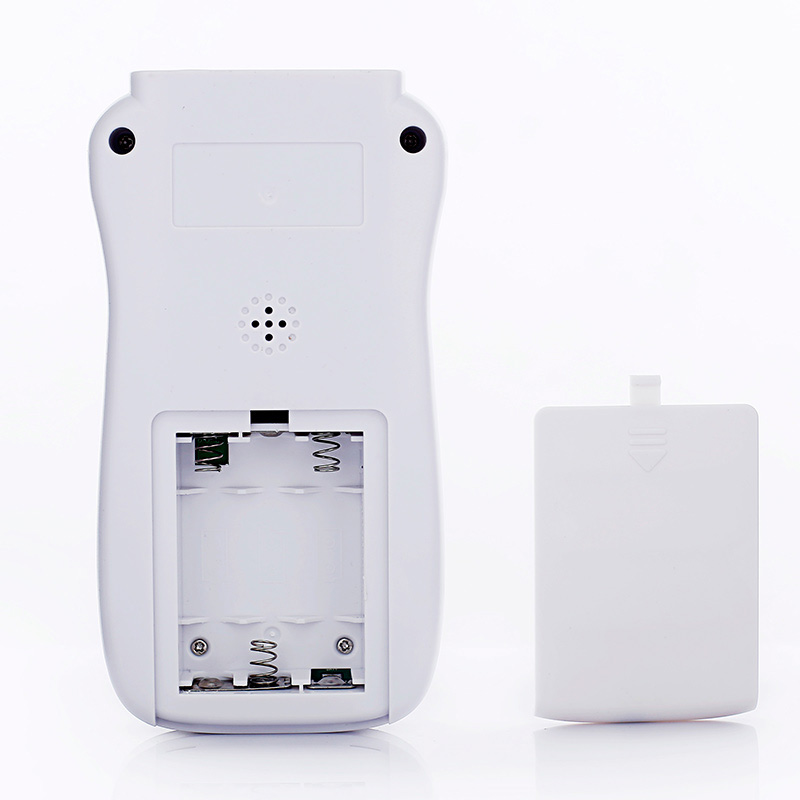

-Rechargeable lithium battery,10 hours continuous working (Single blood oxygen)
-With audible, text and visual alarms, three levels of alarms
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Application range |
Cat/Dog/Horse/Medicine/Surgery/Operating Room |
|
SpO2 |
Measurement range: 70~99% |
|
Accuracy: 70%~99%:±2 digits; 0%~69% no definition |
|
|
Resolution: 1% |
|
|
Pulse Rate |
Measure range: 18-300 bpm |
|
Accuracy: ±3bpm or±3% |
|
|
Resolution: 1bpm |
|
|
Temperature |
Measure range: 0~50°C |
|
Accuracy: ±0.1°C |
|
|
Resolution: 0.1°C |
|
|
Power Requirements |
Lithium Battery capacity: 3100mAh |
|
Charging time: 8 hours |
|
|
Working time: 10hours(Single blood oxygen) |
|
|
Dimension |
81.7mm*27.9mm*152.2mm |
|
Environment requirements |
OperationTemperature 5~4°C |
|
Storage Temperature -20~+55°C |
|
|
Ambient Humidity≤80% no condensation in operation |
|
|
≤93% no condensation in storage |
|
|
Atmosphere pressure 86kPa-106kPa |
