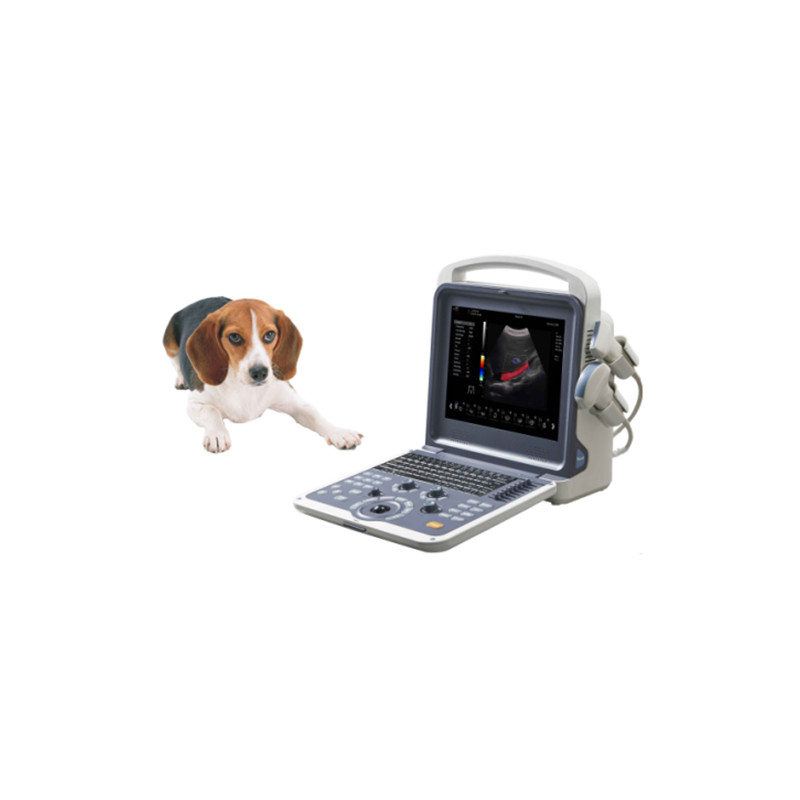

VC-U14
Portable Veterinary Color Doppler Ultrasound Scanner
Contact
Add to List
product description
Features
- High resolution medical LED monitor, 12 inch monitor；
- With larger ultrasound interface, The resolution is less than 0.5mm;
- Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours;
- Two probe connected ports, could match with kinds of probes, convex probe, micro-convex and linear probe.
- Based on PC platform, can upgrade the system according to the customer requirement and be compatible with a various of printers;
- The abundant peripherals: 2 USB ports, 2 Internet interface, RS232 interface, VGA output interface, DVI interface.
- Multi-language software for choose: Chinese, English, Spanish, Russian, Persian and French;
- The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface;
- Applications: Canine, Feline, Ovine, Equine, Bovine, Swine
Technical Specifications
|
PARAMETER |
SPECIFICATION |
|
Displaying mode |
B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, CFM, PW, 4D |
|
Signal processing |
Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
|
Image processing |
THI PSHI TM broadband multi-frequency harmonic image Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization Storage: Direct date transfer to U disk or PC Remote: Real-time remote MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Continuous Dynamic Focusing Trapezoid Image (Option) Real time 4D imaging (Option) |
|
General measurement |
B mode-distance, circumference, area, volume, angle, area Red, Diam Red, M mode- distance, time, velocity, heart rate |
|
Canine measurement |
BD, CRL,GS,HD |
|
Ovine measurement |
BPD, CRL |
|
Feline measurement |
BD, HD |
|
Equine measurement |
GS-H, GS-V |
|
Bovine measurement |
CRL, HD, TD |
|
Swine Measurement |
TD, HD |
|
Scanning depth |
≥300mm |
|
Probe elements |
128 |
|
Body mark |
Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts |
|
Cine loop |
Automatically & manually |
|
Image storage format |
BMP, JPEG, PNG |
|
Image storage size |
64G |
|
Input/output ports |
VGA, HSUSB, Dicom, DVI, COM |
|
Gray |
256 |
Standard configuration
- Main unit
- 2 probe connectors
- User’s Manual
- Built-in li-ion battery
- Hard disk (SSD)
Optional
- 5MHz abdominal probe (2.0, 3.0, 3.5, 4.0, 5.5Mhz)
- 5MHz micro-convex probe (5.0, 6.0, 6.5, 9.0, 10.0Mhz)
- 5MHz linear probe (6.0, 6.5, 7.5, 10.0, 12.0Mhz)
- 5MHz transvaginal probe (5.0, 6.0, 6.5, 7.5, 9.0Mhz)
- 5Mhz rectal probe (5.0, 6.0, 6.5, 7.5, 9.0Mhz)
- 5Mhz phased array probe (2.1, 3.0, 3.5, 4.0, 5.5Mhz)
- 4D volume probe (2.0, 3.0, 3.5, 4.0, 5.5Mhz)
- USB laser printer and Video printer
- Aluminum case
- Trolley
